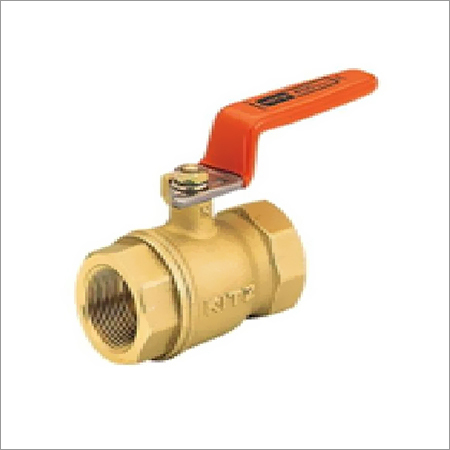

Kitz Forged Brass Ball Valve
Product Details:
Product Description
We as a prime exporter, manufacturer, supplier and trader are instrumental in offering an extensive variety of KITZ Forged Brass Ball Valve to our prestigious customers. Our gave valve is exceptionally refreshing in different building and petroleum commercial ventures for its reduced configuration. Offered valve is sourced from our solid traders at most sensible costs. This valve is checked by our quality controllers against distinctive parameters. Besides, our customers can profit this valve in distinctive shapes and sizes. Our array of KITZ Forged Brass Ball Valve is very much acclaimed for features, such as, conservative configuration , precise measurements , rust-verification etc.
- Body : Aluminum Die-cast / Equivalent ASTM B85-84-383.0
- Neck : A351 Gr. CF8 (Long neck)
- Disc : A351 Gr. CF8M
- Rubber seat : EPDM
Technical Specifications:
Nominal Size | d | H | D1 | L | S1 | Cv value | |||||
mm | inch | mm | inch | mm | inch | mm | inch | mm | inch | ||
1/4 | 10 | 0.39 | 37 | 1.46 | 70 | 2.76 | 42 | 1.65 | 20 | 0.79 | 4.2 |
3/8 | 10 | 0.39 | 37 | 1.46 | 70 | 2.76 | 42 | 1.65 | 22 | 0.87 | 7.6 |
1/2 | 15 | 0.59 | 40 | 1.57 | 80 | 3.15 | 53 | 2.08 | 26 | 1.02 | 20.0 |
3/4 | 20 | 0.79 | 43 | 1.69 | 80 | 3.15 | 60 | 2.36 | 32 | 1.26 | 29.0 |
1 | 25 | 0.98 | 49 | 1.97 | 110 | 4.33 | 72 | 2.83 | 39 | 1.54 | 40.0 |
1 1/4 | 32 | 1.26 | 55 | 2.16 | 110 | 4.33 | 84 | 3.31 | 48 | 1.89 | 85.0 |
1 1/2 | 40 | 1.57 | 64 | 2.52 | 150 | 5.90 | 92 | 3.62 | 55 | 2.17 | 145.0 |
2 | 50 | 1.97 | 72 | 2.83 | 150 | 5.90 | 110 | 4.33 | 68 | 2.68 | 210.0 |
2 1/2 | 65 | 2.56 | 101 | 3.98 | 200 | 7.87 | 138 | 5.43 | 84 | 3.31 | 405.0 |
3 | 76 | 2.99 | 112 | 4.42 | 300 | 11.81 | 167 | 6.57 | 99 | 3.90 | 615.0 |
4 | 100 | 3.94 | 131 | 5.15 | 300 | 11.81 | 193 | 7.60 | 125 | 4.92 | 1150.0 |
