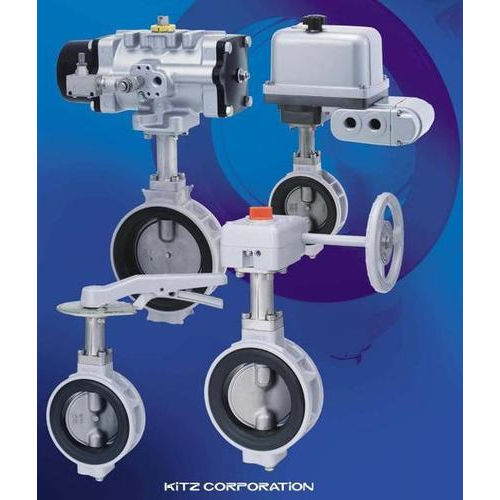

KITZ XJ Series Aluminum Butterfly Valve

KITZ XJ Series Aluminum Butterfly Valve
KITZ XJ Series Aluminum Butterfly Valve
Send Inquiry
Product Code : XJ Series
Brand Name : KITZ
Product Description

This valve consists of a circular disc with its pivot axis at right angles to the direction material is flowing. We have extensive experience in the market that empowers us in emerging as a leading exporter and supplier of KITZ XJ Series Aluminum Butterfly Valve. We procure this valve from reliable and trusted vendors of the market after conducting several market surveys. The body of this valve is made of aluminum. The KITZ XJ Series Aluminum Butterfly Valve is used in oil and water pipelines and vessels.

Features:

  • Maintenance free
  • Rugged construction
  • Longer working life

Technical Specifications:

Class

JIS 10K

Class 150

PN16

1.6MPa




Maximum service pressure

1MPa

1MPa

1.6MPa (16bar)

Service temperature range

- 20 °C~+ 120 °C

Continuous service temperature range

0C ~ +100 C

Face-to-face dimension

API609, BS5155 Short pattern ISO 5752-20, JIS B 2002 46 series

Shell test pressure

Hydrostatic

1.5MPa

1.5MPa

2.40MPa (240bar)

Seat test pressure

Hydrostatic

1.1MPa

1.1MPa

1.76MPa (1.76 bar)

Coupling flanges

ASME Class 150 JIS B 2220 / 2239 10K

ASME Class 150 JIS B 2220 / 2239 10K

EN1092 PN16
